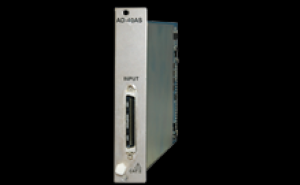

AD Converter Card AD-40AS
Add to Wishlist
1 in stock
Contact for a quote.
Request for Quotationช่องทางการสั่งซื้ออื่น ๆ
ติดต่อทาง Line
@santatech
ติดต่อทางอีเมล์
santatech@gmail.com
ติดต่อทางโทรศัพท์
02-1013454
Description
The cards are for measuring strain, voltage, acceleration, and temperature. CAN data is supported. Isolated amplifier cards and carrier-wave amplifier cards also available for countermeasure against noise.
Channels
8
Input Range
±5 V
±10 V
OFF
Input Modes
Unbalanced (Not balanced differential)
Input Resistance
Approx. 1 MΩ
AD Converter Methods
Successive approximation
AD Converter
Resolution: 16 bits (± 32000 counts/FS)
Accuracy
Within ±0.2% FS
Nonlinearity
Within ±0.1% FS
Input Frequencies
Range: DC to 50 kHz
Deviation: 1dB to -3dB
LPF
Transfer characteristic : 2nd order Butterworth
Cutoff frequencies : 10, 30, 100, 300, 1 k, 3 k, 10 kHz and FLAT (8 steps)
Amplitude ratio at cutoff point : -3 ±1 dB
Attenuation : (-12 ±1) dB/oct.
Power Supply to Sensors
±2.5 V ±1%, each channel
TEDS
Reads information from TEDS-installed sensors.
Optional Accessories
8-channel input cable: U-127 (1.5 m)
Voltage input box: VI-8A with a cable N-121 (1.5 m)
