เครื่องชั่งน้ำหนัก RADWAG PM 25.C32 Precision Balance

SKU: RADWAG PM 25.
Balance offers possibility of weighing loads outside the weighing platform (so called under-pan weighing). This is an alternative for weighing loads with non-standard dimensions and shapes or those generating magnetic field.
Availability:

1 in stock

ติดต่อขอใบเสนอราคา

ขอใบเสนอราคา

รายละเอียด

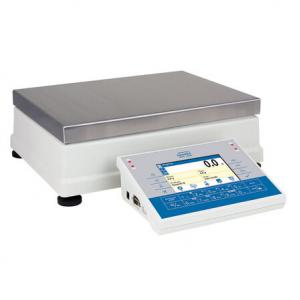

เครื่องชั่งน้ำหนัก RADWAG PM 25.C32 Precision Balance

PM series balances are equipped with an innovative measuring system based on RADWAG MonoBLOCK® technology.

Use of the new measuring system, which is a subject matter of RADWAG patent, guarantees stability of repeatability over time at a range sd<1d. The unique measuring system solution is characterized with great resistance to ambient conditions change.

An in-built 4-point protection system prevents balance overloading, this ensures safety in case too heavy load is applied onto the weighing pan.

 Main features:

  • new RADWAG MonoBLOCK® sensor;
  • unrivalled repeatability of indications;
  • weighing of heavy loads with maximum accuracy;
  • intuitive operation guaranteed by a membrane keyboard;
  • fast mass measurements;
  • robust mechanical design – new lower weighing platform;
  • improved ergonomics – two types of weighing terminal for selection.

Balance offers possibility of weighing loads outside the weighing platform (so called under-pan weighing). This is an alternative for weighing loads with non-standard dimensions and shapes or those generating magnetic field.


DATASHEET

Maximum capacity [Max]

25

 kg

Minimum load

5

 g

Preload range

3.5

 kg

Readability [d]

0.1

 g

Tare range

-25

 kg

Repeatability (5% Max)

0.04

 g

Repeatability (Max)

0.1

 g

Linearity

±0.3

 g

Minimum weight (U=1%,k=2)

8.2

 g

Minimum weight (USP)

82

 g

Stabilization time

3

 s

Adjustment

internal (automatic)

Display

5" graphic colour

Communication interface

2×RS232, USB-A, USB-B, Ethernet, Wi-Fi®, 4 IN / 4 OUT (Print, Tare)

Power supply

100 ÷ 240 V AC 50 / 60 Hz

Power consumption max.

0.5 A

Operating temperature

+10 ÷ +40

 °C

Weighing pan dimensions

350×260

 mm

Packaging dimensions

520×520×280

 mm

Net weight

11

 kg

Gross weight

13.2

 kg
