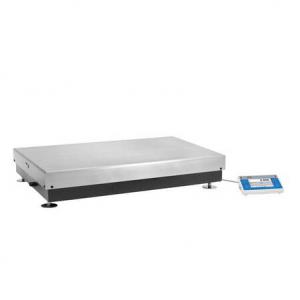

เครื่องชั่ง RADWAG PUE 7.1.150.HRP High Resolution Scale

SKU: RADWAG PUE 7.
Automatic adjustment performed by means of an internal weight guarantees the highest quality of operation and repeatability of measurement. In comparison to manual adjustment process the automatic one is both time-saving and convenient.
Availability:

1 in stock

ติดต่อขอใบเสนอราคา

ขอใบเสนอราคา

รายละเอียด

Professional series of PUE 7.1.HRP high resolution scales is a perfect solution for light industry, especially wherever high accuracy of measurement, precision and repeatability are crucial.


Automatic adjustment performed by means of an  internal weight  guarantees  the highest quality of operation and repeatability of measurement. In comparison to manual adjustment process, the automatic one is both time-saving and convenient.

Standard PUE 7.1.HRP high resolution
scales are equipped with the following interfaces:  2×RS232, 2×USB, 1×Ethernet, 4×IN/4×OUT, Wireless Connection.

Data safety and archiving is assured by software dedicated for RADWAG terminals.

Features:

  • Brand new design of an electromagnetic mechanism housed in a dustproof and waterproof casing
  • Overload protection
  • An in-built adjustment system equipped with an internal weight
  • High IP rating for the platform - IP67
  • Interfaces: RS 232, USB, Ethernet and customized 4 INs and 4 OUTs for cooperation with peripherals

DATASHEET

Maximum capacity [Max]

150

 kg

Minimum load

50

 g

Preload range

30

 kg

Readability [d]

1

 g

Tare range

-150

 kg

Repeatability

1.5

 g

Linearity

±3

 g

Stabilization time

3

 s

Adjustment

internal (automatic)

Display

5.7” resistive colour touchscreen

Protection class

IP 66/67 construction, IP 43 indicator

Communication interface

2×RS232, 2×USB-A, Ethernet, 4 IN / 4 OUT (digital), Wi-Fi®

Power supply

100 ÷ 240 V AC 50 / 60 Hz

Operating temperature

+10 ÷ +40

 °C

Atmospheric humidity

40% ÷ 80%

Housing

construction - mild steel, weighing pan - stainless steel

Weighing pan dimensions

800×600

 mm

Device dimensions

360×313×170

 mm

Packaging dimensions

1000×800×307

 mm

Net weight

71.5

 kg

Gross weight

119

 kg
