RADWAG AS 220.3Y Analytical Balance
Add to Wishlist
Analytical balances designed by the most experienced Radwag experts are a guarantee of perfect weighing parameters and intuitive operation they allow data exchange and offer numerous functions improving effectiveness and operation comfort. There are
Availability:
1 in stock
Contact for a quote.
Request for Quotationช่องทางการสั่งซื้ออื่น ๆ
ติดต่อทาง Line
@santatech
ติดต่อทางอีเมล์
santatech@gmail.com
ติดต่อทางโทรศัพท์
02-1013454
Description

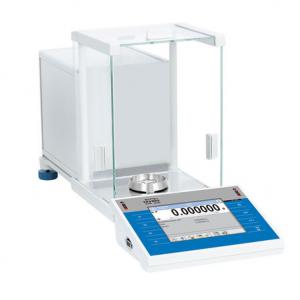

RADWAG AS 220.3Y Analytical Balance
Analytical
balance
AS.3Y series features a 5,7" TFT colourful touch screen display. Its design opens new possibility within the scope ofbalance
operation and presentation of measurement result. The balance enables highly developed customization of its settings through user profiles.
mass
standard. Its level is monitored by a LevelSENSING system, a RADWAG patented solution including an electronic level. A new feature of the 3Y series is on-line monitoring of ambient conditions by means of either internal sensors or external ambient conditions module THB.
weighing
chamber protected by an anti-draft shield against ambient conditions impact. The draft-shield also ensures cleanness and sterility ofweighing
chamber interior.
mass
control process of the same sample undergoing different processes over time. Extended databases enable a user to keep records of all acquired measurements, additionally they make data print and export possible. Due to standard and custom printout formats a user can design and document practically any process in accordance with the requirements of GLP/GMP methods. The balance features an independent mass control mode carried out in cooperation with an automatic feeder PA-04/H series.
DATASHEET
| Maximum capacity [Max] |
220 g |
| Minimum load |
10 mg |
| Readability [d] |
0.1 mg |
| Tare range |
-220 g |
| Repeatability (5% Max) |
0.08 mg |
| Repeatability (Max) |
0.1 mg |
| Linearity |
±0.2 mg |
| Minimum weight (U=1%,k=2) |
16 mg |
| Minimum weight (USP) |
160 mg |
| Stabilization time |
3.5 s |
| Adjustment |
internal (automatic) |
| OIML Class |
I |
| Display |
5.7” resistive colour touchscreen |
| Communication interface |
2×RS232, 2×USB-A, Ethernet, 4 IN / 4 OUT (digital), Wi-Fi® |
| Power supply |
100 ÷ 240 V AC 50 / 60 Hz |
| Power consumption max. |
7 W |
| Operating temperature |
+10 ÷ +40 °C |
| Weighing pan dimensions |
ø100 mm |
| Packaging dimensions |
600×400×540 mm |
| Net weight |
6.2 kg |
| Gross weight |
11 kg |
