เครื่องชั่ง Weight scale radwag wpt-4 3000 c10

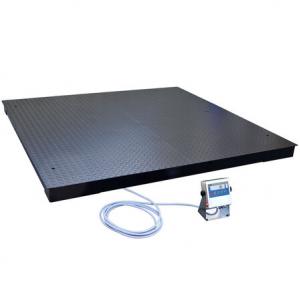

Measurement with application of 4 load cells is a guarantee of precise mass reading, regardless of load positioning on the weighing platform. The platform scales WPT/4 series is made of mild steel powder coated construction of the weighing platform. The platform comprises 4 load cells connected to an indicator PUE C/31H series featuring backlit LCD display and 5 function buttons.
The weighing platform and the indicator are connected through a long cable enabling hanging the indicator on a wall.
The WPT/4 series is available in pit version for easy placing heavy loads on the weighing platform without application of ramps
DATASHEET
| Maximum capacity [Max] |
3000 kg |
| Readability [d] |
1 kg |
| Tare range |
-3000 kg |
| OIML Class |
III |
| Display |
LCD (backlit) |
| Protection class |
IP 65 construction, IP 68 (1h max)/69 indicator |
| Communication interface |
RS232 |
| Power supply |
100 ÷ 240 V AC 50 / 60 Hz and battery |
| Operation time on batteries |
45 h (average time) |
| Operating temperature |
-10 ÷ +40 °C |
| Atmospheric humidity |
10% ÷ 85% RH no condensation |
| Weighing pan dimensions |
1500×2000 mm |
| Weighing platform height |
120 ±10 mm |
| Scale mass with indicator |
230 kg |
