เครื่องชั่ง Weigh scale radwag wpt-4 300 h7-z

SKU: wpt-4 300 h7-
เครื่องชั่ง Weigh scale radwag wpt-4 300 h7-z
Availability:

1 in stock

ติดต่อขอใบเสนอราคา

ขอใบเสนอราคา

รายละเอียด

เครื่องชั่ง Weigh scale radwag wpt-4 300 h7-z

Measurement with application of 4 load cells is a guarantee of precise mass reading, regardless of load positioning on weighing platform.

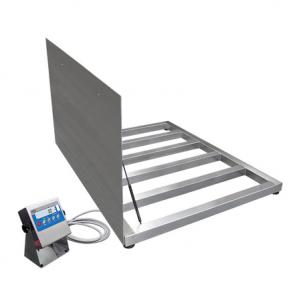

The platform scales WPT/4/H/Z series is fully made of stainless steel profiles with stainless steel weighing platform. The scale features 4 load cells, and it is prepared for mounting as a pit version. The device comes standard with opening weighing platform enabling easy cleaning the area beneath the platform.

The WPT/4/H/Z series features a stainless steel indicator PUE C/31H series with backlit LCD display and function buttons. The indicator is installed on a long cable for easy mounting it on a wall.

The scale is powered from mains, RS 232 interface comes standard.

DATASHEET

Maximum capacity [Max]

300

 kg

Readability [d]

100

 g

Tare range

-300

 kg

Display

LCD (backlit)

Protection class

IP 68 construction, IP 68 (1h max)/69 indicator

Communication interface

RS232

Power supply

100 ÷ 240 V AC 50 / 60 Hz and battery

Operation time on batteries

45 h (average time)

Operating temperature

-10 ÷ +40

 °C

Atmospheric humidity

10% ÷ 85% RH no condensation

Weighing pan dimensions

1000×1000

 mm

Weighing platform height

88

 mm

Scale mass with indicator and frame

105

 kg
