Surface roughness tester srt-6200

Description

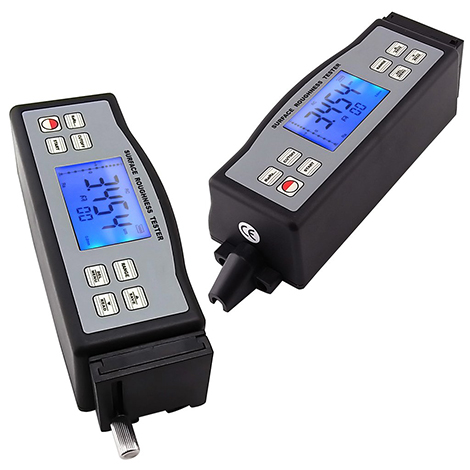

Surface roughness tester srt-6200

SRT-6200 Surface Roughness Tester is design to measure 2 parameters (Ra, Rz) using the built-in Diamond pin probe. It has 4 wave filtering methods (RC, PC-RC,GAUSS & D-P). In addition, said parameters can be downloaded directly to PC via the optional RS-232 CD software & cables.This terster is widely used in production site to measure surface roughness of various machinery-processed parts and calculate corresponding parameters.

Easy measurement can be done by placing the sensor on the surface then uniformly slides along the surface by driving the mechanism inside the tester. The sensor measures the roughness of the surface via the sharp built-in probe.

This roughness causes displacement of the probe which results in change of inductive amount of induction coils so as to generate analogue signal, which is in proportion to the surface roughness at output end of phase-sensitive rectifier. The exclusive DSP processes and calculates then outputs the results clearly on LCD.

Features:

– Multiple parameter measurement: Ra, Rz
– Highly sophisticated inductance sensor
– Fourwave filtering methods : RC, PC-RC, GAUSS and D-P
– Built-inlithium ion rechargeable battery and controlcircuit with high capacity
– Selectable Metric (µm) and Imperial (µinch)
– ExclusiveDSP processes to output measurement results on LCD
– Rechargeable battery via USB cable or Power Adapter

Specifications:

– Multiple parameter measurement: Ra, Rz
– Filtering methods: RC, PC-RC, GAUSS and D-P
– Measuring Range
—- Ra: 0.05-10.00 µm / 1.000-400.0 µinch
—- Rz: 0.020-100.0 µm / 0.780-4000 µinch
– Accuracy:<%
– Fluctuation of display value: <= 6%
– Sensor
—- Test Principle: Inductance type
—- Material of Probe Pin: Diamond
—- Radius of Probe Pin: 10µm
—- Measurement Force of Probe: 16mN(1.6gf)
—- Vertical Radius of Guiding Head: 48mm
—- Probe Angle: 90°
– Maximum driving stroke: 17.5mm/0.7inch
– Cutoff Length: 0.25mm / 0.8mm / 2.5mm optional
– Evaluation length: 1-5 cut-off optional
– Driving speed
—- sampling length = 0.25mm .135mm/s
—- sampling length = 0.8mm .5mm/s
—- sampling length = 2.5mm /s
—- returning /s
– Resolution:
—- 0.001µm if reading <10µm
—- 0.01µm if 10µm <100µm
—- 0.1µm if reading µm
– Data output: communicate with PC through RS232C interface (optional, not included in set)
– Metric / Imperial Conversion
– Display: 4 digits, 10mm LCD with blue backlight
– Power Li-ion battery: rechargeable
– Operating conditions
—- Temperature: 0~50°C
—- Humidity: <80%
– Auto & Manual switch off
– Size: 140 x 57 x 48mm (5.5 x 2.2 x 1.9 inch)
– Weight: about 420g
