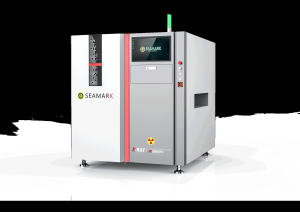

PCBA High-Speed Real-Time Inline Full Inspection AXI9000

Description

Model : AXI9000

X-ray Tube Type : Reflective Sealed micro-focus X-ray Source

Tube Voltage : 40 - 130 Kv

Tube Current : 10 - 300 µA

Maximum Output Power : 39 W

Fiat Panel Type : Amorphous Silicon flat panel Detector

Pixel Matrix : 1536 x 1536

Field of View : 130 x 130 mm

Resolution : 5.8Lp/mm

Image Frame Rate (1 x 1) : 20 fps

AD Conversion Digits : 16 bits

X-Ray Leakage : <1µSv/h

Air Pressure : 0.45 - 0.65 MPa

Input Power : 220V 10A 50 - 60 HZ

Operation System : DELL Precision T5820 Image Workstation

Dimension : 1650 x 1700 x 2100 mm (L x W x H)

Weight : 7500 KG
