กล้องจุลทรรศน์ Meiji techno microscoper em-30

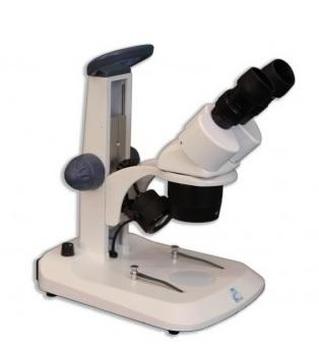

Meiji Techno Microscoper : Meiji Techno EM-30 Microscope

EM-30 Binocular Entry-Level Dual 1x,3x Turret Microscope System.

PRODUCT INFORMATION.

Meiji Techno America’s EM-30 Series meets the demand for a complete Advanced-level Binocular Dual turret style stereo microscopes with a built in 1x, 3x objectives giving the user 10X, 30X magnification with the standard 10X eyepiece. Equipped with LED illlumination in a stable large footprint design and a comfortable carrying grip for ease of portability. Binocular head is inclined at 45° tubes, One ± 5 diopter adjustment, Interpupillary distance adjustable between 55 mm and 75 mm. The EM-30 Binocular Turret Stereo Microscopes have crisp, erect images over a wide field of view. The stand is made out of metal cast alloy and has a rack and pinion design with coarse adjustment and tension control.

VIEWING HEADS.

Binocular or Trinocular 45° inclined tubes Two diopter adjustments Interpupillary distance adjustable between 55 mm and 75 mm All optical parts are anti-fungus treated.

EYEPIECES.

Paired WF 10x/20mm eyepieces.

TURRET OBJECTIVES.

Nosepiece with dual 1x/3x or 2x/4x revolving objectives Magnifications 10x/30x or 20x/40x. Field of views 20 mm/6.6 mm or 10 mm/5.0 mm Working distance 100 mm.

STAND.

Rack and pinion design. Ergonomically designed base with 2 object clamps. Alloy metal cast, hardened off-white coated.

ILLUMINATION.

The 3 W transmitted and incident LED illuminators can be used simultaneously. Both light intensities can be adjusted separately.

FOCUSING ADJUSTMENT.

Coarse adjustment with tension control.

PHOTOMICROGRAPHY.

Meiji Techno offers a broad range of digital video cameras which offers excellent sensitivity, high resolution and a wide dynamic range for the most demanding brightfield and darkfield microscopy applications including clinical pathology and cytology, life sciences and geology. Some models has included software, that can preview and capture still shots and live videos to a PC or Mac with USB port or HDMI connectivity.
