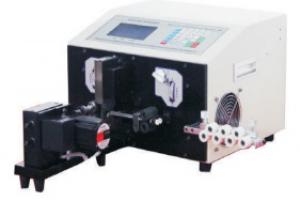

เครื่องตัดสายไฟ เครื่องปอกสายไฟ Wire stripping and cutting machine yh-bnx2

รายละเอียด

เครื่องตัดสายไฟ เครื่องปอกสายไฟ Wire stripping and cutting machine yh-bnx2

Set of mechanical and electrical, microcomputer for the integration of automatic computer Baoxian machine is a introduction of Japan, Taiwan and other advanced technology of fully automated CNC equipment. Widely used in the electronics industry, with automobile and motorcycle industry, electrical appliances, electrical appliances, lamps, toys and other products of the harness processing. Appropriate stripping wire PVC / Teflon / silicone line /. Glass fiber. This product uses LCD LCD screen dialogue mode, with beautiful appearance, simple operation, easy maintenance, stable performance, fast, high precision and other major features. Wire length can be arbitrarily set, in accordance with customer requirements free to modify, stripping different thickness of the wire, but also on the cable, jacket line, power cord and casing cutting function

Model   YH-BNX2

Cutting length   0.1mm – 100

Cutting tolerance  (0.2±0.002×L)mm (L = Cutting Length)

Stripping length   Head 0.1 – 250mm, Tail 0.1-150mm

Twisting length   Haed 0.1 –30mm, Tail 0.1-15mm

Middle stripping section   12

Wire size  0.1-16mm2 ( AWG5#-AWG30#)

Conduit diameter ￠13
