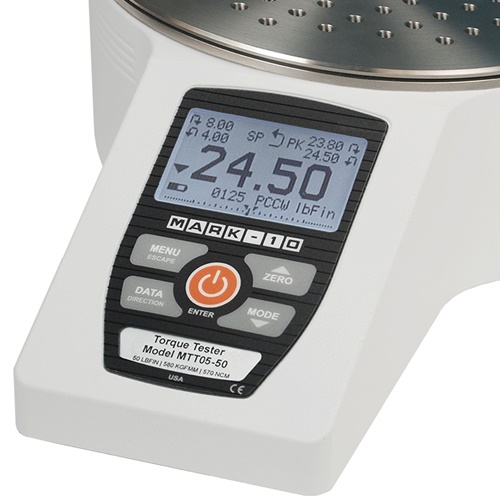

Torque TestersSeriesTT05
Add to Wishlist
1 in stock
Contact for a quote.
Request for Quotationช่องทางการสั่งซื้ออื่น ๆ
ติดต่อทาง Line
@santatech
ติดต่อทางอีเมล์
santatech@gmail.com
ติดต่อทางโทรศัพท์
02-1013454
Description

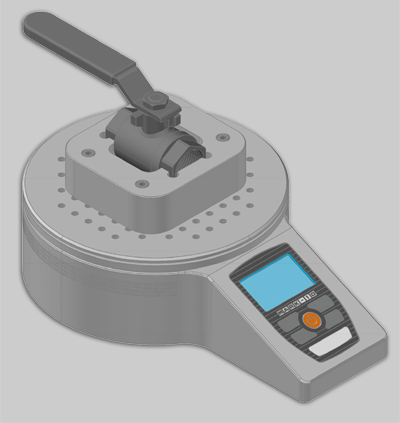

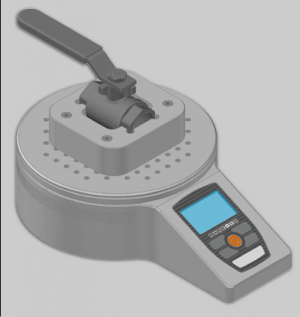

- Stainless steel loading plate with #10-32 threaded holes accommodates fixtures and attachments
- Threaded holes are not drilled through the plate, for protection from debris and liquid

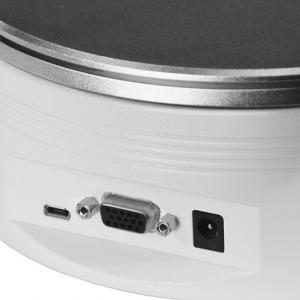

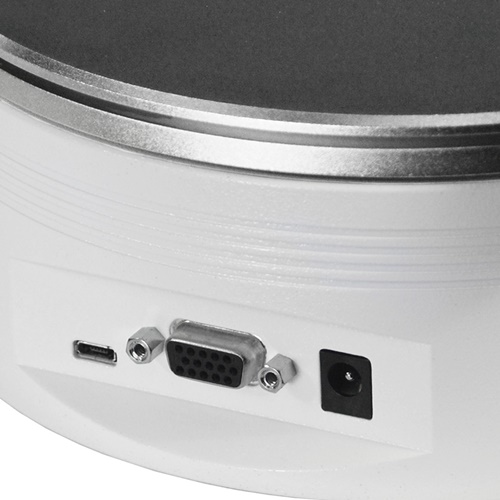

- USB, RS-232, Mitutoyo, and analog outputs
- Automatic output, data storage, and zeroing upon sample break helps automate testing processes
- First / second peak detection for torque tool testing, bottle cap testing, and other applications
- 1,000-point data memory with statistics and outputs
- Password protection prevents unauthorized changes
- Programmable set point indicators and outputs for pass/ fail determination
- High-speed 7,000 Hz sampling rate accurately captures peak torque values
- Configurable audio alarms and key tones
- 5 selectable units of measurement

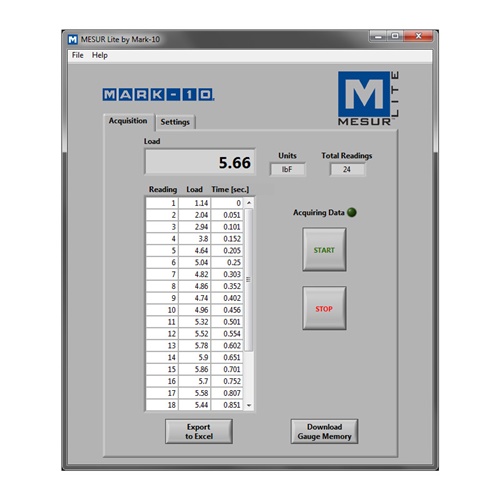

- MESUR™ Lite data collection software included
| Accuracy: | ±0.3% of full scale | |
| Sampling rate: | 7,000 Hz | |
| Power: | AC or rechargeable battery. Multi-step low battery indicator is displayed, tester shuts off automatically when power is too low. | |
| Battery life: |
Backlight on: up to 7 hours of continuous use Backlight off: up to 24 hours of continuous use |
|
| Measurement units: | ozFin, lbFin, kgFcm, Nm, Ncm | |
| Output: |
USB / RS-232: Configurable up to 115,200 baud. Mitutoyo: Serial BCD suitable for all Mitutoyo SPC-compatible devices. Analog: ±1 VDC, ±0.25% of full scale at capacity. General purpose: Three open drain outputs, one input. Set points: Three open drain lines. |
|
| Safe overload: | 150% of full scale (display shows “OVER” at 110% and above) | |
| Weight: | 9 lb [4.1 kg] | |
| Shipping weight: | 10 lb [4.5 kg] | |
| Environmental requirements: | 40°F – 100°F [5°C – 45°C], < 96% humidity (non-condensing) | |
| Warranty: | 3 years (see individual statement for further details) | |
|
|
Model no. |
HS code: |
|
MTT05 (all models) |
9024100000 |
|
|
CERT CT002 15-1004 09-1165 08-1026 AC1030 AC1031 AC1032 AC1035 |
9024800000 |
|
|
ECCN: |
EAR99 |
|
|
Country of origin: |
USA |
|
Ordering Information
|
Model |
Description |
|
MTT05-12 |
Torque tester, 12 lbFin / 192 ozFin / 14 kgFcm / 135 Ncm / 1.35 Nm |
|
MTT05-25 |
Torque tester, 25 lbFin / 400 ozFin / 28 kgFcm / 290 Ncm / 2.9 Nm |
|
MTT05-50 |
Torque tester, 50 lbFin / 800 ozFin / 58 kgFcm / 570 Ncm / 5.7 Nm |
|
MTT05-100 |
Torque tester, 100 lbFin / 1600 ozFin / 116 kgFcm / 115 Ncm / 11.5 Nm |
|
Additional Items to Consider |
|
|
CERT |
Certificate of calibration with data |
|
CT002 |

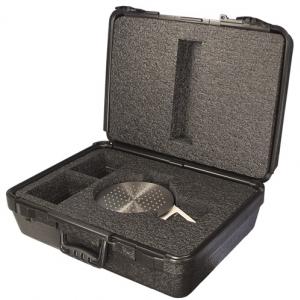

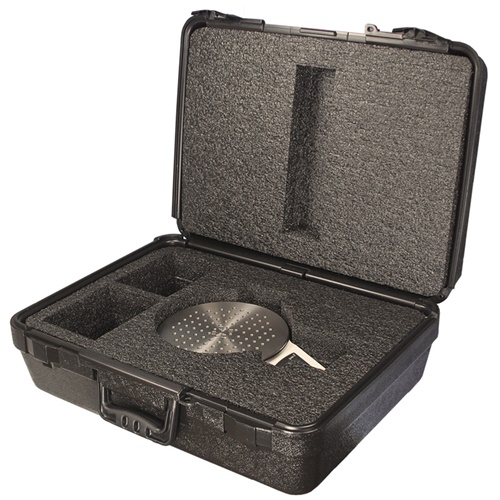

Carrying case for TT05 |
|
15-1004 |

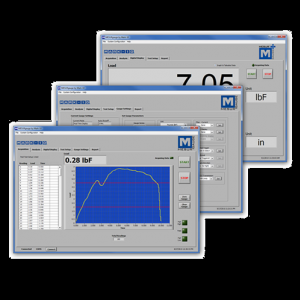

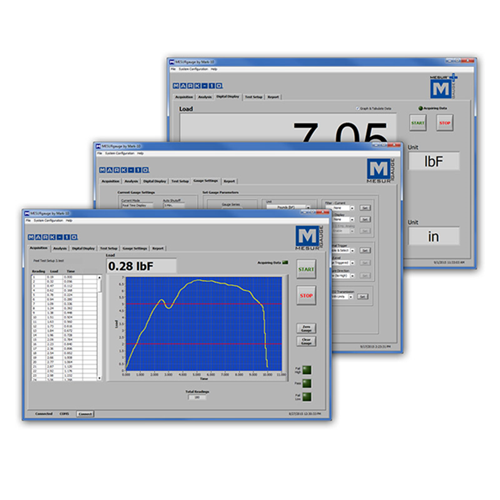

MESUR®gauge software |
|
09-1165 |
Spare USB cable |
|
08-1026 |
Spare rechargeable battery |
|
AC1030 |
Spare AC adapter, 110V |
|
AC1031 |
Spare AC adapter, 220V EUR |
|
AC1032 |
Spare AC adapter, 220V UK |
|
AC1035 |
Spare AC adapter, 220V AUS |
