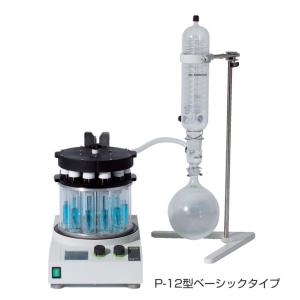

SIBATA Multi-sample parallel evaporator, Multivapor evaporator connection type P-12

Description

● Reduce sample loss due to impact: By attaching a porous filter (made of PE) to the lid, sample loss due to impact and contamination of the vacuum cap can be reduced.
● Easy sample preparation: Sample tubes processed in high-speed solvent extraction, chromatography, synthesis equipment, etc., can be used directly.
● Clear sample visibility: The sample heating chamber is made of transparent glass, allowing for visual inspection of the sample condition.
● The vacuum cap has a unique internal structure, preventing cross-contamination between adjacent samples.

Type: Evaporator Connection Type
Sample Tube Capacity: 30 mL
Shaking Speed Range: 0-485 rpm
Power Consumption: Max. 800 W
Weight: Approx. 21 kg
Temperature Settings: Room Temperature to 95°C
Power Supply: 100-120 V, 50/60 Hz
Dimensions: W270 x D400 x H400 mm (excluding condenser)
Components: Multivapor P-12 main unit, 12 sample tubes, rotary evaporator connection parts, safety shield, sealing, frit
