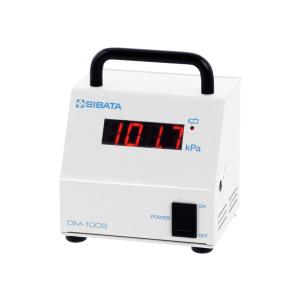

SIBATA Digital manometer DM-100S type
Add to Wishlist
A compact and easy -to -use tabletop vacuum meter using a semiconductor sensor. Approximately 700g lightweight compact size including batteries Continuous operation for 60 hours or more is possible with two AA batteries.
Availability:
Out of stock
Contact for a quote.
Request for Quotationช่องทางการสั่งซื้ออื่น ๆ
ติดต่อทาง Line
@santatech
ติดต่อทางอีเมล์
santatech@gmail.com
ติดต่อทางโทรศัพท์
02-1013454
Description
| Item Code | 071060-1002 |
|---|---|
| Model | DM-100S |
| Measurement Range | 0 to 101.3kPa (absolute pressure) |
| Accuracy | Straight line ... ± 0.3 % of f.s ± 1digit |
| Connection |
Outer diameter φ11mm x Inner diameter φ6 mm, 1/4R standard Removable |
| Measured pressure | Absolute pressure |
| Measuring fluid | Pure non -corrosive gas |
| Measurement display | Digital (LED) |
| Minimum value displayed | 0.1kPa |
| Temperature drift | Zero/Span ± 0.1 %/℃ of F.S |
| Record meter output | 0 to 1V from 0 to 100kPa |
| Mass | 0.7kg |
| Operating Environment | 0 to 40 ° C |
| Power Supply | AC100V and AA batteries x 2 (100V power supply requires an optional AC adapter) |
| Size | W96 x D77 x H89mm |
