Personal Air Sampler MINIPUMP PMP-001
Add to Wishlist
Personal Air Sampler MINIPUMP PMP-001
Availability:
Out of stock
Contact for a quote.
Request for Quotationช่องทางการสั่งซื้ออื่น ๆ
ติดต่อทาง Line
@santatech
ติดต่อทางอีเมล์
santatech@gmail.com
ติดต่อทางโทรศัพท์
02-1013454
Description

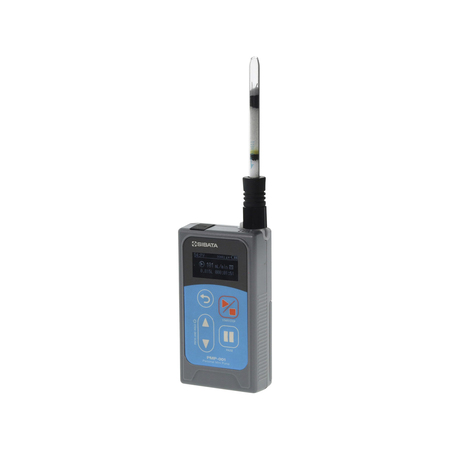

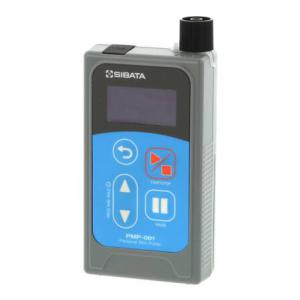

Personal Air Sampler MINIPUMP PM
P-001
The PMP-001 personal minipump is a small, light-weight, portable air sampling pump equipped with functionality for measuring accumulated flowrates. It is specifically designed for the low flowrate zones so the flowrate setting range is 10 to 300 mL/min. Constant flowrate functionality is included to inhibit suction flowrate drops associated with suction pressure increases
● This is a vertical and thin type, small, light-weight, portable air sampling pump.
● The product is equipped with a flow sensor so it can directly measure the suction flowrate and digitally display the instantaneous flowrate and accumulated flowrate.
● Constant flowrate functionality is included to inhibit suction flowrate changes associated with suction pressure changes.
● You can select the display mode for the instantaneous flowrate and accumulated flowrate from the value converted based on temperature and atmospheric pressure (25 ℃ at 1 atm, 20 ℃ at 1 atm).
● This minipump is specifically designed for low flowrate zones of 10 to 300 mL/min.
● It is equipped with the pause function so operation can be paused.
| Item Code | 080870-001 |
|---|---|
| Model | PMP-001 |
| Pump Method | Diaphragm type |
| Flow Accuracy | ±5% or ±5mL/min of the set flowrate value, whichever is larger |
| Flowmeter | Differential pressure type |
| Variable Flow Rate Range | 10∼300mL/min |
| Constant Flow Rate Usage Range |
10mL/min: 0∼10kPa 50mL/min: 0∼30kPa 100mL/min:0∼30kPa 200mL/min:0∼20kPa 300mL/min: 0∼10kPa |
| Suction Port | Outer diameter DIA.6 and DIA.8 mm (tubes used: inner diameter DIA.5 and DIA.7 mm) |
| Instantaneous Flow Rate Display Range | 10~450mL/min |
| Mass | 190g(Including battery) |
| Time Settings |
000:00:00~999:59:59(hours.minutes.seconds) (in case of time setting,Hour: Minute) |
| Operation Mode |
Manual, down timer, volume timer, interval timer |
| Pause Function | Pause is possible by pressing the PAUSE button while driving |
| Display | Organic EL display |
| Cumulative Flow Rate Display | 0.000-9999.9L |
| Operating Environment | Temperature 0-40ºC, Relative humidity 10-90%(Provided there is no condensation) |
| Power Supply | AA batteries 2 pices, DC5V (microUSB) |
| Operating Time |
10mL/min : 10hour (No load) 100mL/min : 10hour (No load) |
| Size | 63(W)x29(D)x115(H)mm |
| Accessories |
Low flow orifice adapter 1 set 2 AA batteries (for operation check) |
