เตาอบลมร้อนขนาดใหญ่

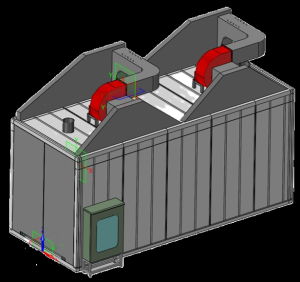

Oven body structure

Work space

2400×6000×3900 mm(W×L×H)

Outside

SUS304 or SUS409

Inside

SUS409

Heat insulating material

Rock wood

Door open

double-door Swing

Seal material

High temperature up to 250 C

Technical data

Operation temperature

Room temperature~120°C

temperature fluctuation

≤±1°C

Temperature stability

≤±2

Temperature uniformity

≤±2.5%°C(max temperature empty test)

temperature rise

≤room temperature+25°C

temperature rate

≤90min(empty test)

heating power

36 KW(2 groups)

Blower power

7.5KW×2 sets

Exhaust power

-

Power supply

380-400 V 50 Hz

Blowing system

Air supply mode

bottom to top forced hot air circulation

Air out way

left and right sides bottom

Airflow control

double layer multihole adjusting panel

Air return method

multihole panel on the top of heating chamber

Blower motor

low noise centrifugal blower, noise below 65db

Heating system

Electric heater

star connection 220V 50HzU-shaped heating tube

Location

in air duct of left and right sides
