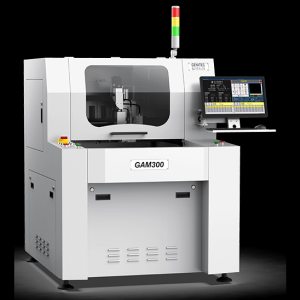

เครื่องตัดบอร์ดอิเล็กทรอนิกส์ Model GAM 300 Automatic PCB Router Machine

SKU: GAM 300 Autom

Availability:

Out of stock

ติดต่อขอใบเสนอราคา

ขอใบเสนอราคา

ช่องทางการสั่งซื้ออื่น ๆ

รายละเอียด

เครื่องตัดบอร์ดอิเล็กทรอนิกส์ Model GAM 300 Automatic PCB Router Machine.

The valid cutting size of 300*350mm, smaller machine placing area.

Equipped with high-speed CCD auto vision calibration system.

Provide dual worktables, and also can be merged to form a single worktable.

Can choose upper dust collector or lower dust collector.

The auto tool-change module (5 router bit seats) and automatic upper cover plate function.(optional)

※Welcome customized request.

Optional.

Safety light curtain

Broken milling tool detection

Milling tool diameter detection

The height checking module in laser

Barcode reader

The customized MES

Specifications.

Change without notice. Welcome customized request.
Valid cutting size	300*350 mm
Cutting function	Tweening to straight line, L shape, U shape, Circle, Arc
Process table	Dual tables
Repeat precision	±0.01mm
Cutting precision	±0.05mm
Max moving speed	XY: 1000mm/sec,Z: 600mm/sec
Max moving trip	X:761mm Y:390mm Z:90mm
Spindle's speed	MAX: 60000rpm (Adjustable)
Tool change type	Manual tool change
Safety protection	Safety light curtain (Optional)
Cutting speed	1-100mm/s (Adjustable)
Operating system	Windows 10
Program teaching mode	Intuitive teaching by CCD color image input
Program backup	USB data transfer
Control method	Precision multi-axis control system
XYZ axis driving mode	AC Servo motor
Size of milling tool	∮0.8-3.0mm
Voltage/Power requirement	AC220V 50/60HZ 2.2KW 1Φ
Pneumatic pressure requirement	0.6MPa, 75L/min

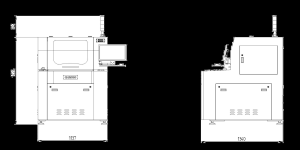

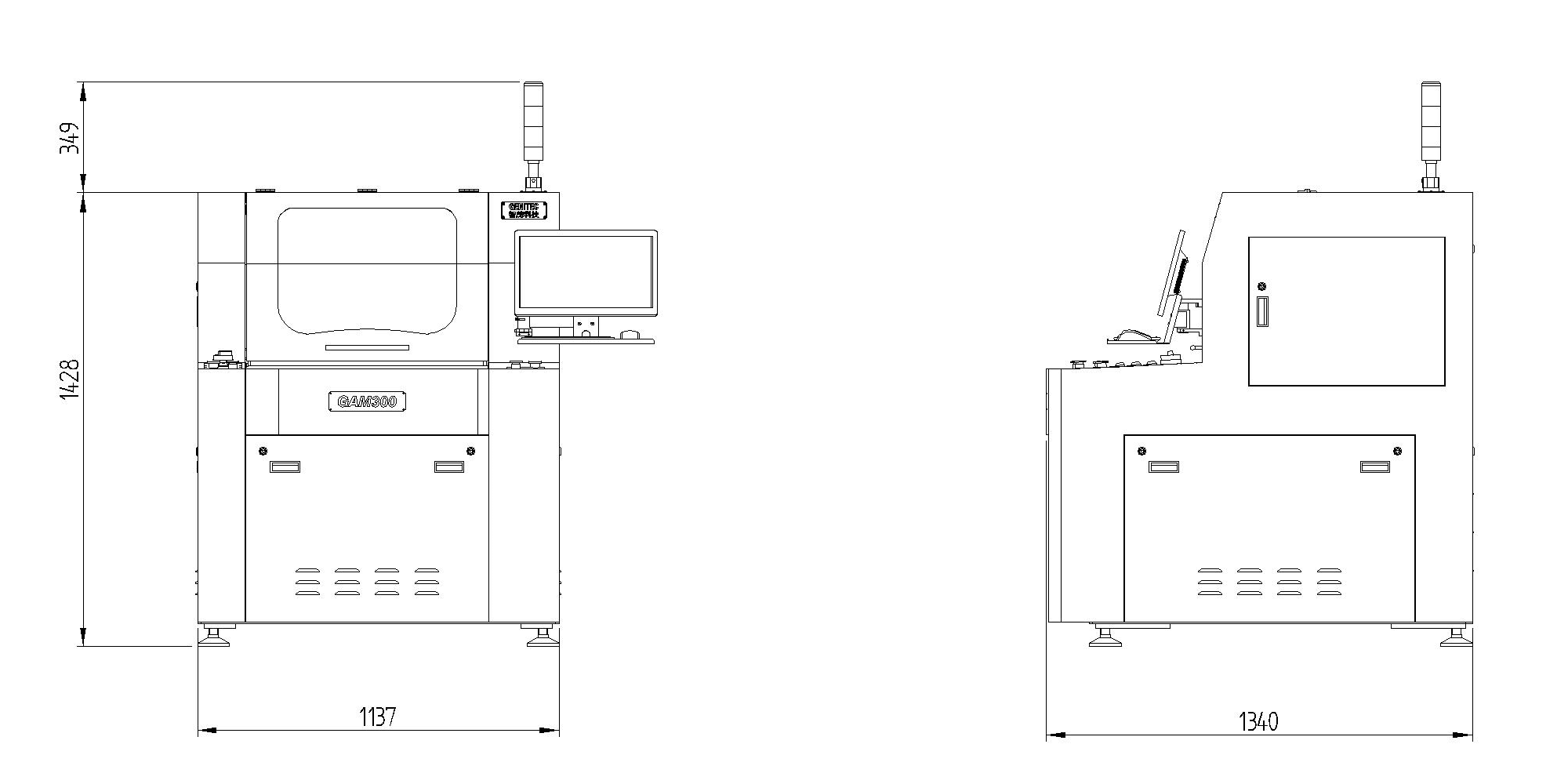

Dimensions (WDH)	113713401428mm
Weight	490KG
Dust collector	TS200
