Clamp on adapter hioki 9290-10

Description

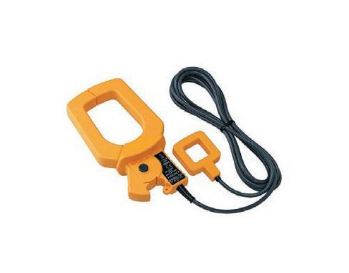

Clamp on adapter hioki 9290-10

The Hioki clamp sensor is the best in its class, combining Hioki's expertise in current sensing technology. The 9290-10 is a clamp adapter rated for 1500A AC and has Ratio 10: 1 CT, in addition to large clamp diameter, wide frequency characteristic and good phase characteristic, the CT also provides Hioki clamp on electric meter with extended range and large current measurement reliably.

Adapter for connecting to clamps
High power measurement range up to 1000A AC continuous at CT 10: 1
Clamp size ø55mm
Adapter size 27 x 27mm
HIOKI, Japan
