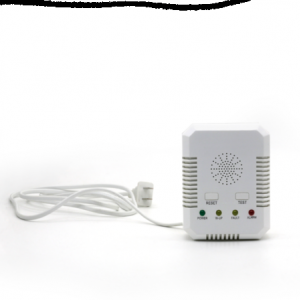

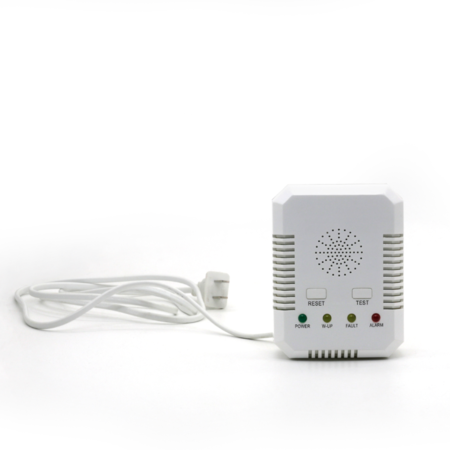

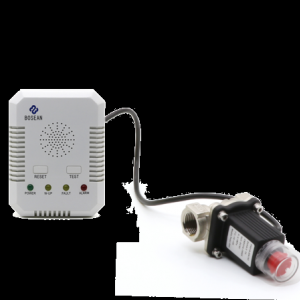

BH-H3-HCL hydrogen chloride Gas Alarm with shut off valve
Add to Wishlist
1 in stock
Contact for a quote.
Request for Quotationช่องทางการสั่งซื้ออื่น ๆ
ติดต่อทาง Line
@santatech
ติดต่อทางอีเมล์
santatech@gmail.com
ติดต่อทางโทรศัพท์
02-1013454
Description
BH-H3-HCL hydrogen chloride Gas Alarm with shut off valve
Fix the appliance on the wall at a horizontal distance as 2~4m from the cooker or gas source;
The vertical location of the appliance should be decided according to the type of gas sort:
●LPG:Fix it within 0.3 meters above the ground;
●Natural Gas:Fix it within 0.3 meters below the Roof
Such location should be avoided:
◆Near the windows or passage with strong wind,
◆Water fog and drop or such moist place；
◆Easy polluted or high tem environment near Oven,
◆Covered by other things.
| Model | BH-H3-HCL |
| Detecting gas | Combustible gas & CO |
| Sensor type | Semiconductor sensor |
| Gas Sampling | Diffuse naturally |
| Alarm set point | Combustible gas: 10%LEL / CO: 100PPM |
| Warming time | 3min |
| Accuracy | Combustible gas: ±3%LEL / CO: ±50PPM |
| Response time | ≦60s |
| Resume automatically | ≦30s |
| Power | AC220V |
| Alarm current | ＜50mA |
| Power Consumption | ＜1W |
| Alarm Method | Visual and audible |
| Sound level | ≧70dB |
| Optional function | 220V relay,9V pulse, relay output NO or NC |
| Environment | Temperature: 0℃～55℃ Humidity: ＜95% no dew |
| Life | 5 year (normal use) |
| Weight | 150g |
| Dimension | L×B×H(mm):108×82×49.5 |
TAG: Gas Domestic Alarm Gas Detector For Home Gas Alarm home co detector gas detector oem
|
Model |
Range | L- alarm | H - alarm |
|
CO |
0-1000ppm |
35ppm |
200ppm |
|
O2 |
0-30%vol |
19.5%vol |
23.5%vol |
|
H2 |
0-100%LEL |
20%LEL |
50%LEL |
|
H2S |
0-100ppm |
10ppm |
20ppm |
|
CH4 |
0-100%LEL |
20%LEL |
50%LEL |
|
C2H4O |
0-20ppm |
10ppm |
15ppm |
|
C2H4 |
0-100%LEL |
20%LEL |
50%LEL |
|
C3H8 |
0-100%LEL |
20%LEL |
50%LEL |
|
C2H5OH |
0-100%LEL |
20%LEL |
50%LEL |
|
NH3 |
0-100ppm |
25ppm |
50ppm |
|
CL2 |
0-20ppm |
5ppm |
10ppm |
|
O3 |
0-20ppm |
5ppm |
10ppm |
|
SO2 |
0-20ppm |
2ppm |
5ppm |
|
PH3 |
0-20ppm |
0.3ppm |
5ppm |
|
CO2 |
0-50000ppm |
1000ppm |
2000ppm |
|
NO |
0-250ppm |
20ppm |
50ppm |
|
NO2 |
0-20ppm |
5ppm |
10ppm |
|
HCN |
0-500ppm |
10ppm |
20ppm |
|
HCL |
0-50ppm |
10ppm |
20ppm |
|
CH2O |
0-10ppm |
2ppm |
5ppm |
|
VOC |
0-100ppm |
20ppm |
50ppm |
|
C6H6 |
0-100ppm |
20ppm |
50ppm |
