MI-TIC E L : กล้องถ่ายภาพความร้อนงานกู้ภัย

The argus® Mi-TIC E L is the most affordable high resolution large screen thermal imager for fire fighting applications. The camera provides a crystal clear image with dynamic range up to 760ºC (1400ºF) and at the same time see very low temperature objects, which is ideal for casualty searches.

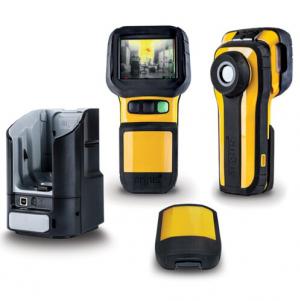

The argus® Mi-TIC E L is available with a unique dual use desktop/in-truck charger station which securely retains and charges both the thermal imager and a spare battery. The charger stations can be daisy-chained together, up

to a maximum of 6 units.

PERSONAL

Weighing approximately 865g (1lb 15oz) the argus® Mi-TIC E L thermal imager can be easily and comfortably held in the palm of your hand. Unlike many thermal imagers, the argus® Mi-TIC E L design allows it to be worn

in multiple ways – in the hand, inside a pocket, clipped outside a pocket, clipped to a lanyard or hung around the neck.

SIMPLE

With a thumb operated green on/off button and superb start up time of 5 seconds, the argus® Mi-TIC E L is simple to use.

SAFE

The use of Lithium Iron Phosphate technology ensures the argus® Mi-TIC E L delivers 2 hours of battery life over 1,000s of cycles. They are inherently safe due to the use of patented nanophosphate® technology.

ENVIRONMENTAL DATA

The camera has been designed to operate:

• continuously between -20ºC (-4ºF) and +85ºC (185ºF) or

• 150ºC (300ºF) for 15 minutes

• 260ºC (500ºF) for 5 minutes

Sealing : IP67, will withstand immersion in water

Impact : The camera will withstand a drop from a height of 2m (78 inches) onto concrete

Storage : It is recommended that for maximum effective operational life, the storage temperature is kept between -20°C (-4°F) and +40°C (104°F)

Detector

Sensor type : Un-cooled Microbolometer

Sensor material : Amorphous Silicon (ASi)

Resolution : 384 x 288px

Pixel size : 25μm

Spectral response : 7.5 – 14μm

MDTD (Full camera system sensitivity) : 50mK (0.05ºC) typical (Minimum Discernible Temperature Difference)

NETD (Sensor sensitivity) : <50mK (<0.05ºC)

Dynamic range : -40°C to 760°C (-40ºF to 1400°F)

Refresh rate : 60 Hz

Direct Temperature Measurement (DTM) : -40°C to 760°C (-40°F to 1400°F)
