IMADA T-Peel Tester

รายละเอียด

IMADA T-Peel Tester

MX2-110 Test Stand

ZT/DST Digital Force Gauge

Gripping Attachments

• T-Peel Tester Standard Features
• Wide speed range: 0.4 – 12 in/min speed is set digitally (optional speed ranges available)
• Screw drive system and high performance brushless motor provides smooth and powerful operation over the entire speed range.
• Selectable Manual, Increment, and Force Control (with ZT Series gauges) modes
• Easy-to-use program dial and menu screens control mode, speed, timer and cycles
• MX2-110 Stroke: 9.4″ (240mm)
• Max clearance 9″ (with extender 14″)
• Force gauge units are selectable: Newton, lbf and kgf
• Force gauge output: USB (ZT), RS-232C, Digimatic and analog outputs

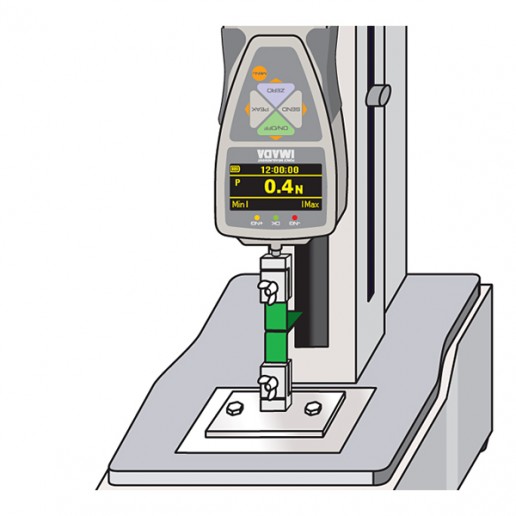

    The T-Peel Tester is an integrated testing system specifically for T-Peel or 180 degree peel applications. Perform quick and efficient T-peel tests with the GT-30 vise and FC-40 film grip, MX2-110 motorized test stand, and ZT Series / DST digital force gauge.
