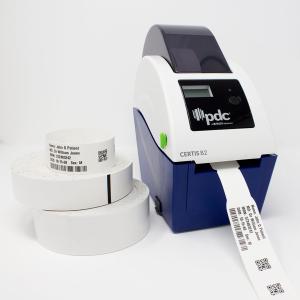

เครื่องพิมพ์สายรัดข้อมือผู้ป่วย Brady

SPECIFICATIONS

CERTISTM B2-20

CERTISTM B2-30

Part Number

PD-B2-20EA1000

PD-B2-30EA1000

Resolution

203 dpi

300 dpi

Printing Method

Direct Thermal

Max Print Speed

5 ips

4 ips

Max Print Width

2.05"

1.89"

Max Media Width

0.59" ~ 2.05"

Media Roll Capacity

6.5" OD

Media Core Diameter

1.0" or 1.5"

Media Type

Wristbands & Labels

Media Wound Type

Wound In/Wound Out

Dimensions

4.3"W x 8.3"H x 10.2"D

Connectivity

Internal Ethernet (10/100 Mbps), USB 2.0

Display

128x64 pixels graphic type LCD display with back light

Power

External universal switching power supply

Input: AC 100-240 V    Output: CC 24V 2A, 50W

Operation Switch,

Button, LED

One power switch, one feed button, one LED (3 colors)

Sensors

Gap transmissive sensor (offset 4 mm from center)

Black mark reflective sensor (adjustable)

Head open sensor

Real Time Clock

Standard

Printer Language

ZPL, ZPL II, TSPL-EZTM

Environment Condition

Operation: 41~1040F (5-400C), 25-85% non-condensing

Storage: -40~1400F (-40~600C), 10-90% non-condensing

Safety Regulation

FCC, UL, CE, NOM

Bar Code

1D bar code: Code 39, Code 93, Code 128UCC, Code 128 subsets A, B, C,

Codabar, Interleave 2 of 5

2D bar code: PDC-417, Maxicode, DataMatrix, QR code, Aztec

Warranty

3 years, with 1 year Hot Swap included

Included in Box

External Power Supply, Power Cord, USB Cable, USB Drive with: Labeling Software,

Quick Start Guide & User Manual installed
