ตู้อบลมร้อน Memmert UN450plus

SKU: MM UN450plus
Memmert UN450plus ตู้อบลมร้อน Universal Oven UN450plus การอบแห้งความร้อนการเสื่อมสภาพการเผาในและการชุบแข็งอย่างแม่นยำในการวิจัยวิทยาศาสตร์อุตสาหกรรมและการประกันคุณภาพ
Availability:

1 in stock

ติดต่อขอใบเสนอราคา

ขอใบเสนอราคา

รายละเอียด

Memmert UN450plus ตู้อบลมร้อน

เตาอบอเนกประสงค์ UN450plus
การจัดส่งแบบมาตรฐาน Universal Oven
เตาอบในห้องปฏิบัติการ U ที่ใช้งานได้ทั่วไปเป็นอุปกรณ์คลาสสิกของ Memmert สำหรับการควบคุมอุณหภูมิในด้านวิทยาศาสตร์การวิจัยและการทดสอบวัสดุในอุตสาหกรรม ผลงานชิ้นเอกที่สมบูรณ์แบบทางเทคโนโลยีที่ทำจากสแตนเลสสตีลคุณภาพสูงถูกสุขอนามัยทำความสะอาดง่ายไม่เป็นที่ต้องการในแง่ของเทคโนโลยีการระบายอากาศและการควบคุมการป้องกันอุณหภูมิที่สูงเกินไปและเทคโนโลยีการทำความร้อนที่ปรับแต่งอย่างแม่นยำ

ในหน้านี้คุณจะพบข้อมูลทางเทคนิคที่จำเป็นทั้งหมดเกี่ยวกับเตาอบในห้องปฏิบัติการ Memmert สากล ทีมงานลูกค้าสัมพันธ์ของเรายินดีที่จะช่วยเหลือหากคุณต้องการข้อมูลเพิ่มเติม หากคุณต้องการโซลูชันพิเศษที่กำหนดเอง

Temperature

Working temperature range at least 5 (UN/UNplus/UNm/UNmplus) or 10 (UF/UFplus/UFm/UFmplus) above ambient temperature to +300 °C
Setting accuracy temperature up to 99.9 °C: 0.1 / from 100 °C: 0.5
Setting temperature range +20 to +300°C
Temperature sensor 2 Pt100 sensors DIN Class A in 4-wire-circuit for mutual monitoring, taking over functions in case of an error

Control technology

ControlCOCKPIT TwinDISPLAY. Adaptive multifunctional digital PID-microprocessor controller with 2 high-definition TFT-colour displays.
Language setting German, English, Spanish, French, Polish, Czech, Hungarian
Timer Digital backwards counter with target time setting, adjustable from 1 minute to 99 days
Function HeatBALANCE adapting the distribution of the heating performance of the upper and lower heating circuit from -50 % to +50 %
Function SetpointWAIT the process time does not start until the set temperature is reached
Calibration three freely selectable temperature values
adjustable parameters temperature (Celsius or Fahrenheit), air flap position, programme time, time zones, summertime/wintertime

Ventilation

Convection natural convection
Fresh air Admixture of pre-heated fresh air by electronically adjustable air flap
Vent vent connection with restrictor flap

Communication

Documentation programme stored in case of power failure
Programming AtmoCONTROL software on a USB stick for programming, managing and transferring programmes via Ethernet interface or USB port

Safety

Temperature control mechanical temperature limiter TB, protection class 1 according to DIN 12880 to switch off the heating approx. 20°C above nominal temperature
Temperature control overtemperature monitor TWW, protection class 3.1 or adjustable temperature limiter TWB, protection class 2, selectable on display
AutoSAFETY additionally integrated over- and undertemperature monitor "ASF", automatically following the setpoint value at a preset tolerance range, alarm in case of over- or undertemperature, heating is switched off in case of overtemperature
Autodiagnostic system for fault analysis
Alarm visual and acoustic

Standard equipment

Internals 2 stainless steel grid(s), electropolished
Works calibration certificate Calibration at +160°C
Door fully insulated stainless steel doors with 2-point locking (compression door lock)

Stainless steel interior

Interior easy-to-clean interior,made of stainless steel, reinforced by deep drawn ribbing with integrated and protected large-area heating on four sides
Volume 449 l

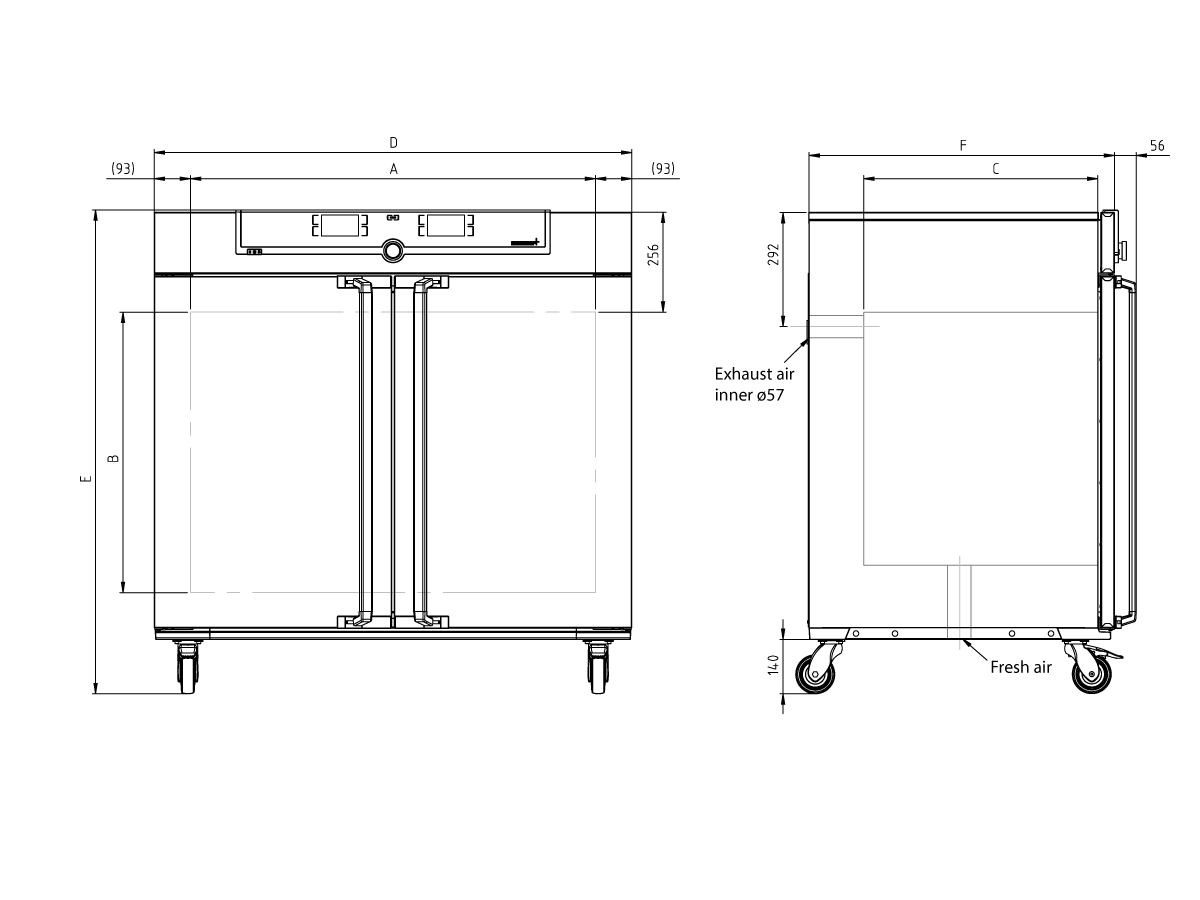

Dimensions w(A) x h(B) x d(C): 1040 x 720 x 600 mm
Max. number of internals 8
Max. loading of chamber 300 kg
Max. loading per internal 30 kg

Textured stainless steel casing

Dimensions w(D) x h(E) x d(F): 1224 x 1247 x 784 mm (d +56mm door handle)
Installation on lockable castors
Housing rear zinc-plated steel

Electrical data

Voltage Electrical load 400 V, 3 phases, 50 Hz approx. 5800 W

Ambient conditions

Set Up The distance between the wall and the rear of the appliance must be at least 15 cm. The clearance from the ceiling must not be less than 20 cm and the side clearance from walls or nearby appliances must not be less than 5 cm.
Altitude of installation max. 2,000 m above sea level
Ambient temperature +5 °C to +40 °C
Humidity rh max. 80 %, non-condensing
Overvoltage category II
Pollution degree 2

Packing/shipping data

Transport information The appliances must be transported upright
Customs tariff number 8419 8998
Country of origin Federal Republic of Germany
WEEE-Reg.-No. DE 66812464
Dimensions approx incl. carton w x h x d: 1330 x 1440 x 1050 mm
Net weight approx. 161 kg
Gross weight carton approx. 227 kg
